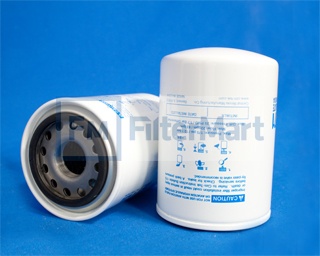

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #01-3218

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	144.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	438 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.66 IN (92.96 MM)
  (B) Outer Diameter, Bottom:	3.71 IN (94.23 MM)
  (D) Inner Diameter, Bottom:	1.07 IN (27.18 MM)
  (E) Length:	5.00 IN (27.18 MM)
  (F) Thread:	1-1/8-16UNF

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	WIRE MESH
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  12
