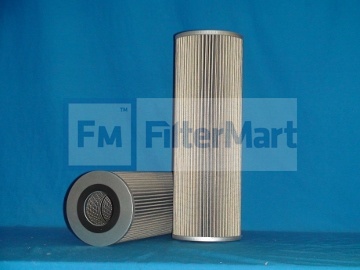

Filtermart™ PLEATED SYNTHETIC ELEMENTS

Add To Cart

FMC #04-8137

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Polyester/Polypropylene Water Filtration

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	4.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.00 IN (152.40 MM)
  (B) Outer Diameter, Bottom:	6.00 IN (152.40 MM)
  (C) Inner Diameter, Top:	2.63 IN (66.80 MM)
  (D) Inner Diameter, Bottom:	2.63 IN (66.80 MM)
  (E) Length:	18.00 IN (66.80 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	SYNTHETIC
  Filter Area:	3900 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	30.00 LB (13.61 KG)
