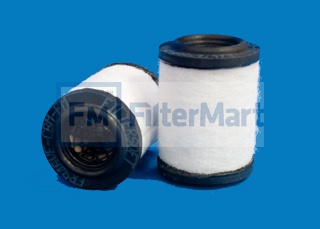

Filtermart™ AIR COALESCER ELEMENT

Add To Cart

FMC #05-1176

$ 11.54 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

*Contact us to check availability of broken cases

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.70 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.07 IN (52.58 MM)
  (B) Outer Diameter, Bottom:	2.07 IN (52.58 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (D) Inner Diameter, Bottom:	1.00 IN (25.40 MM)
  (E) Length:	2.69 IN (25.40 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  6
