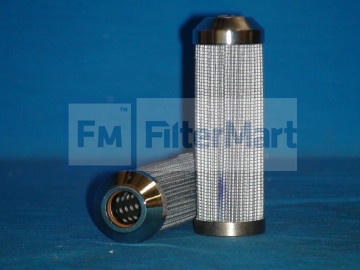

Filtermart™ PLEATED MICROGLASS ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #05-1343

$ 63.77 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	3045 PSID
  Maximum Temperature:	248 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.30 IN (33.02 MM)
  (B) Outer Diameter, Bottom:	1.30 IN (33.02 MM)
  (C) Inner Diameter, Top:	0.65 IN (16.51 MM)
  (E) Length:	3.94 IN (0.00 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:	43 SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
