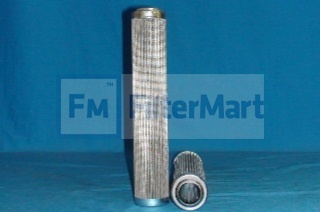

Filtermart™ PLEATED MICROGLASS STEEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #05-2862

$ 81.44 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	40.00
  Beta Rating:	B40=200
  Collapse Pressure Rating:
  Maximum Temperature:	250 F
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.75 IN (44.45 MM)
  (B) Outer Diameter, Bottom:	1.75 IN (44.45 MM)
  (C) Inner Diameter, Top:	1.01 IN (25.65 MM)
  (D) Inner Diameter, Bottom:	0.93 IN (23.62 MM)
  (E) Length:	9.65 IN (23.62 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	WIRE
  Filter Area:
  Plating:
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
