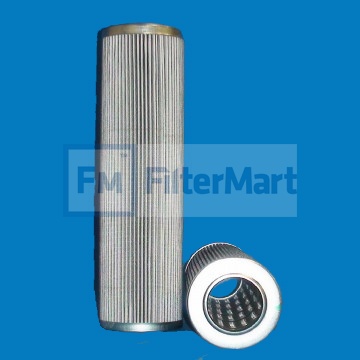

Filtermart™ HYDRAULIC FILTER, PRESSURE LINE

Add To Cart

FMC #05-5741

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	12.00 ABSOLUTE
  Beta Rating:	B12=200
  Collapse Pressure Rating:	290 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.78 IN (96.01 MM)
  (B) Outer Diameter, Bottom:	3.78 IN (96.01 MM)
  (C) Inner Diameter, Top:	2.23 IN (56.64 MM)
  (D) Inner Diameter, Bottom:	2.23 IN (56.64 MM)
  (E) Length:	14.05 IN (56.64 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	EPOXY
  Type of Endcap:	STEEL/ALUMINUM
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	2.90 LB (1.32 KG)
