All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

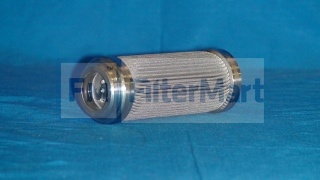

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 10.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 4500 PSID |
| Maximum Temperature: | 800 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 50 PSID |
| (A) Outer Diameter, Top: | 1.75 IN (44.45 MM) |
| (B) Outer Diameter, Bottom: | 1.75 IN (44.45 MM) |
| (C) Inner Diameter, Top: | 1.00 IN (25.40 MM) |
| (E) Length: | 4.50 IN (0.00 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | VITON |
| Type of Adhesive: | TIG & PLASMA WELDED |
| Type of Endcap: | STAINLESS STEEL |
| Center Tube: | STAINLESS STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | N/A |
| Plating: | N/A |
| Outer Jacket: | NONE - NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 5.00 LB (2.27 KG) |
