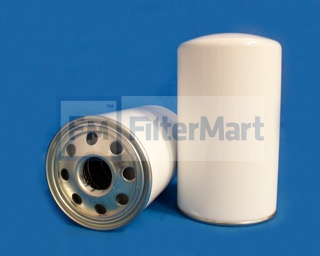

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #06-0814

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	125.00
  Beta Rating:	N/A BPV 5.80
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.04 IN (128.02 MM)
  (B) Outer Diameter, Bottom:	5.04 IN (128.02 MM)
  (E) Length:	8.95 IN (0.00 MM)
  (F) Thread:	1 1/4 BSP

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN SPIN ON

• Packaging Specifications

  Number per Carton:

  1
