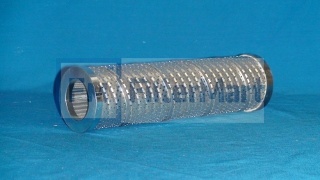

Filtermart™ PLEATED WIRE ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #06-1281

$ 150.00 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	74.00
  Beta Rating:	B74=200
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.90 IN (73.66 MM)
  (B) Outer Diameter, Bottom:	2.90 IN (73.66 MM)
  (C) Inner Diameter, Top:	1.51 IN (38.35 MM)
  (D) Inner Diameter, Bottom:	1.81 IN (45.97 MM)
  (E) Length:	10.63 IN (45.97 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	N/A
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL/ALUM
  Center Tube:	PLATED STEEL
  Type of Media:	WIRE MESH
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES - PERFORATED
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
