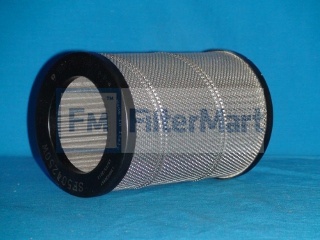

Filtermart™ PLEATED WIRE ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #06-5416

$ 131.87 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	250.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.35 IN (135.89 MM)
  (B) Outer Diameter, Bottom:	5.35 IN (135.89 MM)
  (C) Inner Diameter, Top:	3.56 IN (90.42 MM)
  (D) Inner Diameter, Bottom:	3.56 IN (90.42 MM)
  (E) Length:	7.88 IN (90.42 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	N/A
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	N/A
  Plating:	NICKEL PLATED
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
