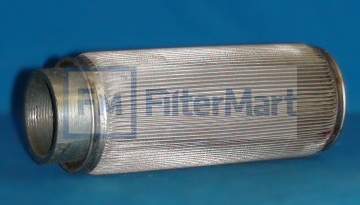

Filtermart™ SUCTION STRAINER/CRIMPED STYLE

Add To Cart

FMC #09-0935

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Wire Filters/Suction Strainer

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	200.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.45 IN (87.63 MM)
  (B) Outer Diameter, Bottom:	2.76 IN (70.10 MM)
  (C) Inner Diameter, Top:	2.25 IN (57.15 MM)
  (E) Length:	9.50 IN (0.00 MM)
  (F) Thread:	2"NPT

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:
  Center Tube:
  Type of Media:	WIRE MESH
  Filter Area:
  Plating:
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.00 LB (1.36 KG)
