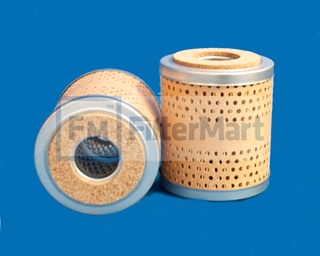

Filtermart™ FUEL ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #10-0022

$ 9.26 Each

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.00 IN (76.20 MM)
  (B) Outer Diameter, Bottom:	3.00 IN (76.20 MM)
  (C) Inner Diameter, Top:	1.06 IN (26.92 MM)
  (D) Inner Diameter, Bottom:	1.06 IN (26.92 MM)
  (E) Length:	3.63 IN (26.92 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	0.40 LB (0.18 KG)
