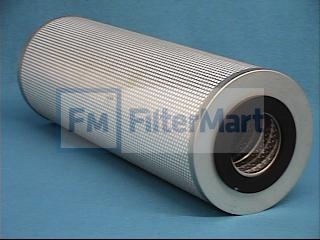

Filtermart™ ACTIVATED ALUMINA ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #12-0043

$ 86.10 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

*Contact us to check availability of broken cases

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Adsorption Filters/Activated Alumina

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.00 IN (152.40 MM)
  (B) Outer Diameter, Bottom:	6.00 IN (152.40 MM)
  (C) Inner Diameter, Top:	2.25 IN (57.15 MM)
  (D) Inner Diameter, Bottom:	2.25 IN (57.15 MM)
  (E) Length:	18.00 IN (57.15 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	YES
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	ACTIVATED AL
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	4
  Carton Weight:	48.00 LB (21.77 KG)
