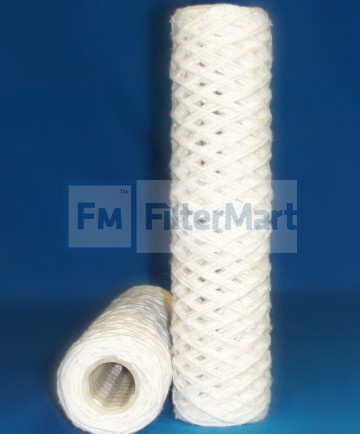

Filtermart™ STRING WOUND ELEMENT

30 (1 case) 60 (2 cases) 90 (3 cases) 120 (4 cases) 150 (5 cases) 180 (6 cases) 210 (7 cases) 240 (8 cases) 270 (9 cases) 300 (10 cases) 330 (11 cases) 360 (12 cases) 390 (13 cases) 420 (14 cases) 450 (15 cases) 480 (16 cases) 510 (17 cases) 540 (18 cases) 570 (19 cases) 600 (20 cases) Add To Cart

FMC #14-1093

$ 3.39 Each

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*30 per carton - sold by full carton quantities ONLY

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/String Wound Filters/Natural or Synthetic

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	200.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	300 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.50 IN (63.50 MM)
  (B) Outer Diameter, Bottom:	2.50 IN (63.50 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (D) Inner Diameter, Bottom:	1.00 IN (25.40 MM)
  (E) Length:	10.00 IN (25.40 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	NONE
  Type of Endcap:	NONE
  Center Tube:	POLYPRO
  Type of Media:	B-COTTON
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  30
