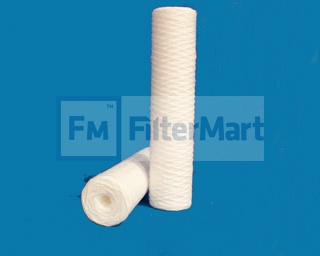

Filtermart™ STRING WOUND ELEMENT

6 (1 case) 12 (2 cases) 18 (3 cases) 24 (4 cases) 30 (5 cases) 36 (6 cases) 42 (7 cases) 48 (8 cases) 54 (9 cases) 60 (10 cases) 66 (11 cases) 72 (12 cases) 78 (13 cases) 84 (14 cases) 90 (15 cases) 96 (16 cases) 102 (17 cases) 108 (18 cases) 114 (19 cases) 120 (20 cases) Add To Cart

FMC #14-1116

$ 29.43 Each

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton - sold by full carton quantities ONLY

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/String Wound Filters/Natural or Synthetic

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.50 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	200 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (D) Inner Diameter, Bottom:	1.00 IN (25.40 MM)
  (E) Length:	20.00 IN (25.40 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	NONE
  Type of Endcap:	NONE
  Center Tube:	POLYPRO
  Type of Media:	NFDA-POLY
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
