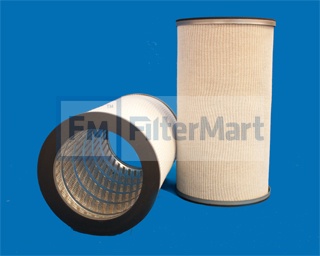

Filtermart™ LIQUID COALESCER ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #16-0083

$ 134.89 Each

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Coalescer Filters/Liquid

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.63 IN (193.80 MM)
  (B) Outer Diameter, Bottom:	7.63 IN (193.80 MM)
  (C) Inner Diameter, Top:	5.63 IN (143.00 MM)
  (D) Inner Diameter, Bottom:	5.63 IN (143.00 MM)
  (E) Length:	13.63 IN (143.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	FIBERGLASS
  Filter Area:	312 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - SOCK
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	5.00 LB (2.27 KG)
