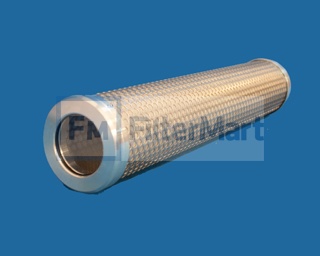

Filtermart™ LIQUID SEPERATOR ELEMENT

Add To Cart

FMC #17-0123

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Liquid

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	100.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	430 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.68 IN (68.07 MM)
  (B) Outer Diameter, Bottom:	2.68 IN (68.07 MM)
  (C) Inner Diameter, Top:	1.69 IN (42.93 MM)
  (E) Length:	13.12 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	ALUMINUM
  Center Tube:	STAINLESS STEEL
  Type of Media:	S. STEEL MESH
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES - PREF.
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
