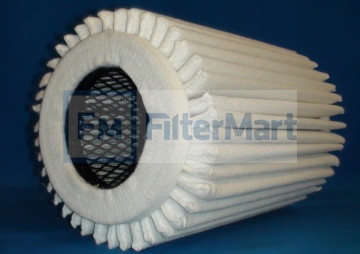

Filtermart™ RADIAL FIN ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #23-1378

$ 256.32 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	11.50 IN (292.10 MM)
  (C) Inner Diameter, Top:	8.25 IN (209.55 MM)
  (E) Length:	17.50 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	POLYESTER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  1
