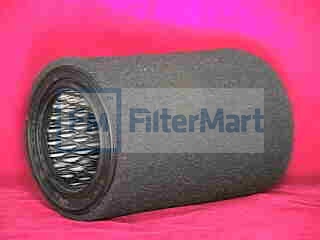

Filtermart™ RADIAL FIN ELEMENT WITH PREFILTER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #23-2520

$ 52.14 Each

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	200 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.50 IN (139.70 MM)
  (B) Outer Diameter, Bottom:	5.50 IN (139.70 MM)
  (C) Inner Diameter, Top:	3.63 IN (92.20 MM)
  (D) Inner Diameter, Bottom:	3.63 IN (92.20 MM)
  (E) Length:	8.75 IN (92.20 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	N/A
  Type of Endcap:	PLASTISOL
  Center Tube:	EXPANDED METAL
  Type of Media:	POLYESTER
  Filter Area:	4.3 SQ.FT.
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	5.00 LB (2.27 KG)
