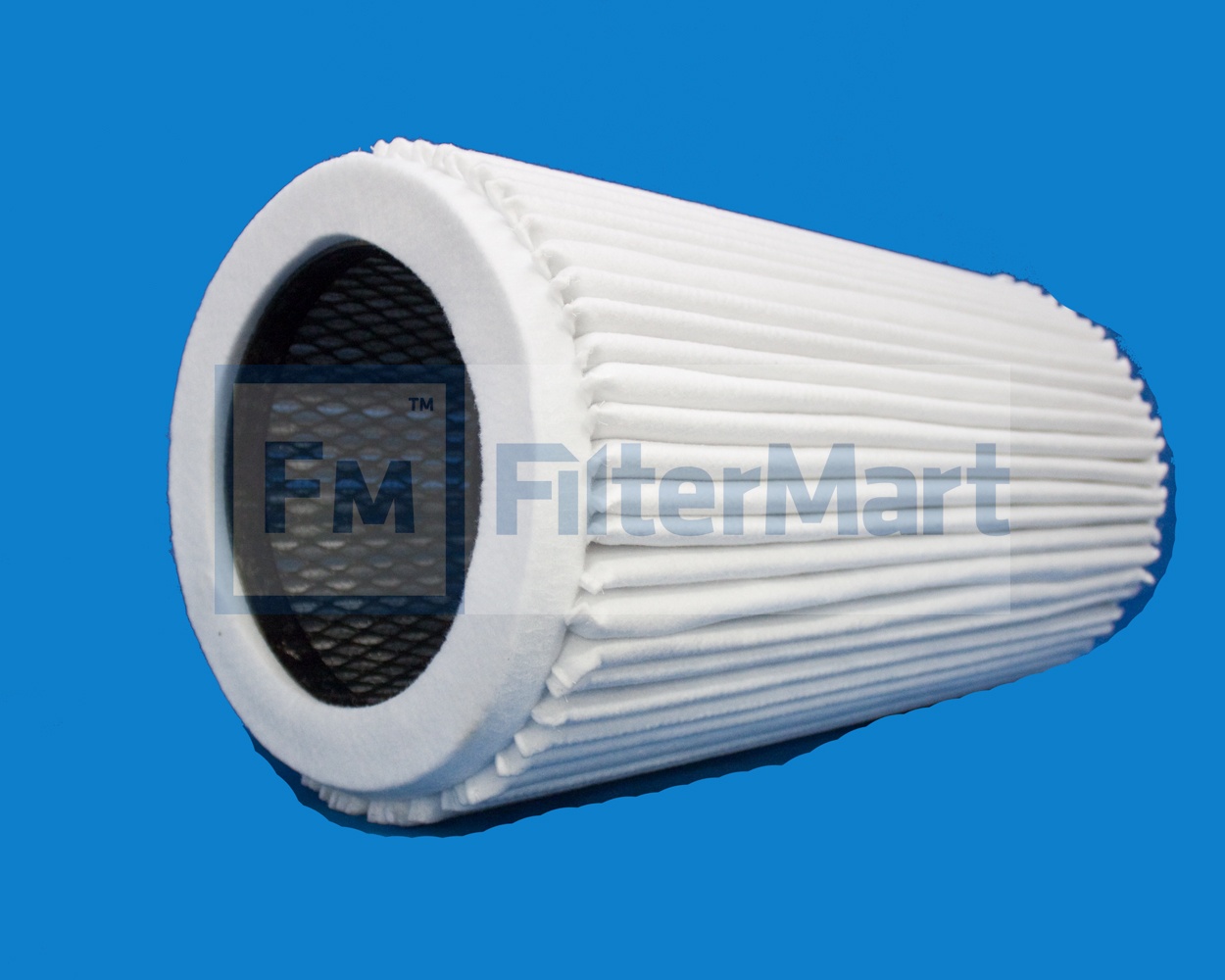

Filtermart™ RADIAL FIN ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #23-3668

$ 1,593.51 Each

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.50
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	800 F MAX
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	12.75 IN (323.85 MM)
  (B) Outer Diameter, Bottom:	12.75 IN (323.85 MM)
  (C) Inner Diameter, Top:	8.75 IN (222.25 MM)
  (D) Inner Diameter, Bottom:	8.75 IN (222.25 MM)
  (E) Length:	25.25 IN (222.25 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:
  Center Tube:	PLATED STEEL
  Type of Media:	FG/ FELT
  Filter Area:	SQ. IN."
  Plating:
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
