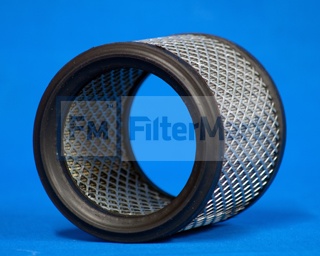

Filtermart™ AIR/OIL SEPARATOR ELEMENT

Add To Cart

FMC #24-0789

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Air/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.00 IN (101.60 MM)
  (B) Outer Diameter, Bottom:	4.00 IN (101.60 MM)
  (C) Inner Diameter, Top:	3.00 IN (76.20 MM)
  (D) Inner Diameter, Bottom:	3.00 IN (76.20 MM)
  (E) Length:	3.97 IN (76.20 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	PVC PLASTISOL
  Type of Endcap:	PVC PLASTISOL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	6.00 LB (2.72 KG)
