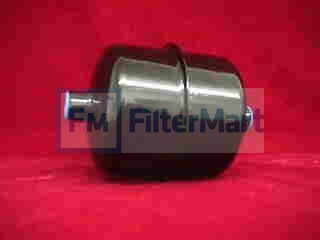

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #25-0326

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Spin-On Filters/Paper. Microglass, Wire, Water Removal

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.75 IN (120.65 MM)
  (B) Outer Diameter, Bottom:	4.75 IN (120.65 MM)
  (C) Inner Diameter, Top:	0.50 IN (12.70 MM)
  (D) Inner Diameter, Bottom:	0.50 IN (12.70 MM)
  (E) Length:	6.31 IN (12.70 MM)
  (F) Thread:	1/2 NPT

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	NONE
  Center Tube:	CARBON STEEL
  Type of Media:	PAPER
  Filter Area:	400 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	6.00 LB (2.72 KG)
