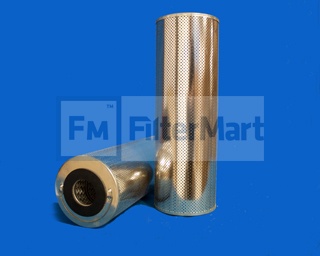

Filtermart™ EDM ELEMENT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Add To Cart

FMC #26-0061

$ 21.71 Each

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

*Contact us to check availability of broken cases

*Please contact us for special volume discounts

*Prices are subject to change without notice

Industrial Filters/EDM Filters/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.00 IN (152.40 MM)
  (B) Outer Diameter, Bottom:	6.00 IN (152.40 MM)
  (C) Inner Diameter, Top:	2.12 IN (53.85 MM)
  (D) Inner Diameter, Bottom:	2.25 IN (57.15 MM)
  (E) Length:	18.00 IN (57.15 MM)
  (F) Thread:

• Physical Specifications

  Handle:	YES
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	22.00 LB (9.98 KG)
