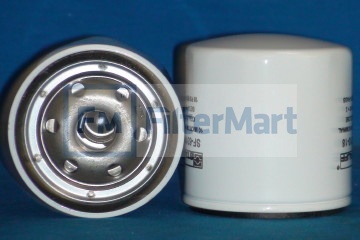

Filtermart™ STAUFF ELEMENT

Add To Cart

FMC #35-2402

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.00 NOMINAL
  Beta Rating:	B10>2
  Collapse Pressure Rating:	200 PSID
  Maximum Temperature:	212F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.00 IN (76.20 MM)
  (B) Outer Diameter, Bottom:	3.00 IN (76.20 MM)
  (C) Inner Diameter, Top:	0.75 IN (19.05 MM)
  (E) Length:	3.06 IN (0.00 MM)
  (F) Thread:	3/4-16 UNF

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:
  Type of Endcap:
  Center Tube:
  Type of Media:	PAPER
  Filter Area:	SQ.IN."
  Plating:
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
