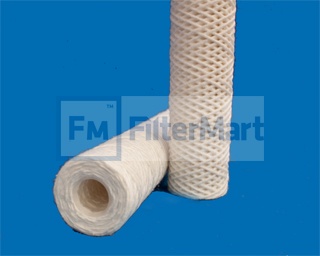

Filtermart™ STRING WOUND ELEMENT

Add To Cart

FMC #10-0153

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*15 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	30.00 NOMINAL
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.50 IN (63.50 MM)
  (B) Outer Diameter, Bottom:	2.50 IN (63.50 MM)
  (C) Inner Diameter, Top:	1.06 IN (26.92 MM)
  (D) Inner Diameter, Bottom:	1.06 IN (26.92 MM)
  (E) Length:	30.00 IN (26.92 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:
  Type of Endcap:
  Center Tube:
  Type of Media:	FDA-RAYON
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  15
