OEM CROSS REFERENCE
| Pall | FMC |
|---|---|
| HC9801FKZ8H | F9801-8K1B |
| HC9801FKP8H | F9801-8K3B |
| HC9801FKN8H | F9801-8K6B |
| HC9801FKS8H | F9801-8K12B |
| HC9801FKT8H | F9801-8K25B |
ELEMENT RATING
| Test Containment | AC Fine Test Dust ACFTD |
| Test Oil | MIL H-5606 |
| Terminal Pressure | 60 PSID (4.14 bar) |
| Pall | Micron | FMC | Average Filter, Ratio |
|---|---|---|---|
| KZ | 1 | K1 | Bx200 @ 1 Micron |
| KP | 3 | K3 | Bx200 @ 3 Micron |
| KN | 6 | K6 | Bx200 @ 6 Micron |
| KS | 12 | K12 | Bx200 @ 12 Micron |
| KT | 25 | K25 | Bx200 @ 25 Micron |
| Element Collapse Press | ANSI B93.25/ISO 2941 | 3000 PSID ( 206.9 bar ) Minimum |
| Dirt Holding Capacity | ANSI B93.31/ISO 4572 | Varies with media, liquid, flow & differential pre |
| Flow Fatigue Resistance | ANSI B93.24/ISO 3724 | Element media supported up & down stream |
| Fluid Compatibility | ANSI B93.23/ISO 2943 |
Compatible with Petroleum Oils 250 F (121 C) Water based fluids, Water Glycol 200 F ( 93 Phosphate Esters require Viton A "O" Rings |
| Element Integrity | ANSI B93.22 | 8 IN. Min. Water column Bubble Point (20.3 cm) |
| Operating Temperature | -20 + 250 F (-29 + 121 C) |

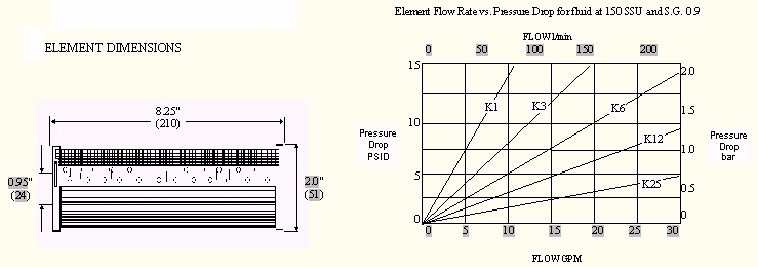

ELEMENT DATA
| Filtration Area | 329 SQ.IN. (0.21 M2) |
| Element Type | Disposable |
| Direction of Flow | Out/In |
| Bond Material | Epoxy |
| Hardware | Plated Steel |
| Element QTY/CTN | 1 One |
| Element WT /CTN | 1.0 LBS (0.45 kg) |
| Element VOL/CTN | 59 CU.IN. (0.001 m3) |
