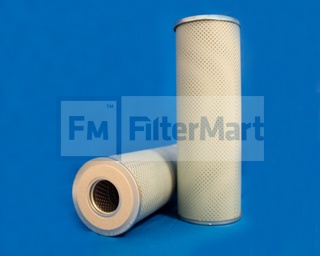

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-4156

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	250
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.23 IN (158.24 MM)
  (B) Outer Diameter, Bottom:	6.23 IN (158.24 MM)
  (C) Inner Diameter, Top:	2.56 IN (65.02 MM)
  (D) Inner Diameter, Bottom:	2.56 IN (65.02 MM)
  (E) Length:	18.06 IN (65.02 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	CELLULOS
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	PAPER
  Filter Area:	4183 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - PERFORATED
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	4
  Carton Weight:	16.00 LB (7.26 KG)
