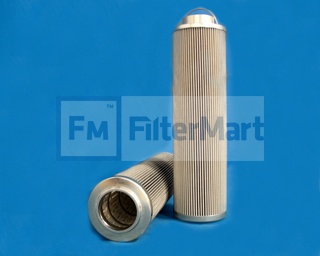

Filtermart™ RETURN LINE ELEMENT

Add To Cart

FMC #05-0604

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 ABSOLUTE
  Beta Rating:	B6 = 200
  Collapse Pressure Rating:	250 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.49 IN (114.05 MM)
  (B) Outer Diameter, Bottom:	4.49 IN (114.05 MM)
  (C) Inner Diameter, Top:	2.71 IN (68.83 MM)
  (E) Length:	16.26 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	YES
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.60 LB (1.63 KG)
