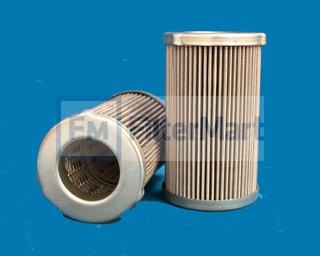

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-0638

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 10 ABSOL
  Beta Rating:	B10=200
  Collapse Pressure Rating:	150
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.32 IN (84.33 MM)
  (B) Outer Diameter, Bottom:	3.32 IN (84.33 MM)
  (C) Inner Diameter, Top:	1.87 IN (47.50 MM)
  (E) Length:	5.56 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	303 SQ.IN.
  Plating:	ZINC PLATE
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	2.00 LB (0.91 KG)
