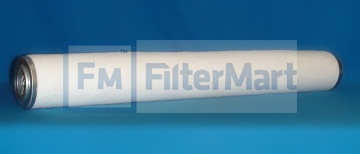

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1690

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*9 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	300 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.75 IN (95.25 MM)
  (B) Outer Diameter, Bottom:	3.75 IN (95.25 MM)
  (C) Inner Diameter, Top:	2.18 IN (55.37 MM)
  (E) Length:	30.06 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	N/A
  Type of Endcap:	TINNED STEEL
  Center Tube:	TINNED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	9
  Carton Weight:	42.00 LB (19.05 KG)
