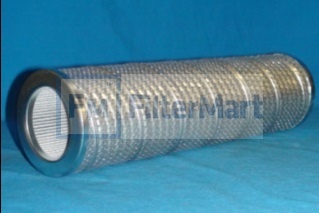

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-3696

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:	B10=200
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.18 IN (106.17 MM)
  (B) Outer Diameter, Bottom:	4.18 IN (106.17 MM)
  (C) Inner Diameter, Top:	2.81 IN (71.37 MM)
  (D) Inner Diameter, Bottom:	1.22 IN (30.99 MM)
  (E) Length:	15.75 IN (30.99 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	CORELESS
  Type of Media:	MICROGLASS
  Filter Area:
  Plating:	ZINC PLATED
  Outer Jacket:	YES - PERFORATED
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
