All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

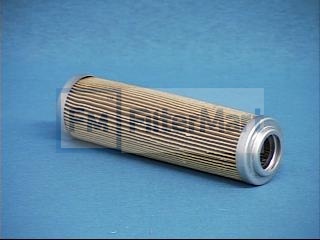

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 10.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | |
| Maximum Temperature: | |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 25 PSID |
| (A) Outer Diameter, Top: | 1.63 IN (41.40 MM) |
| (B) Outer Diameter, Bottom: | 1.63 IN (41.40 MM) |
| (C) Inner Diameter, Top: | 0.88 IN (22.35 MM) |
| (D) Inner Diameter, Bottom: | 0.88 IN (22.35 MM) |
| (E) Length: | 6.13 IN (22.35 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | STEEL |
| Type of Media: | PAPER |
| Filter Area: | SQ.IN. |
| Plating: | ZINC PLATED |
| Outer Jacket: | NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
