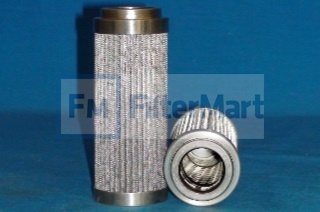

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #06-1475

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	18.00 ABSOLUTE
  Beta Rating:	B18 = 200
  Collapse Pressure Rating:
  Maximum Temperature:	250 F
  Direction of Flow:	N/A
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.73 IN (43.94 MM)
  (B) Outer Diameter, Bottom:	1.73 IN (43.94 MM)
  (C) Inner Diameter, Top:	0.96 IN (24.38 MM)
  (E) Length:	4.45 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	STAINLESS STEEL
  Center Tube:	STAINLESS STEEL
  Type of Media:	SS WIRE MESH
  Filter Area:	N/A
  Plating:
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
