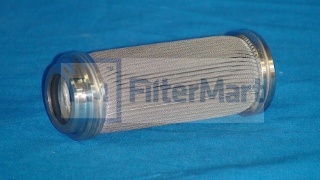

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #06-5444

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*Special Pricing – (limited qty), additional discounts do not apply

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	200.00
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.74 IN (44.20 MM)
  (B) Outer Diameter, Bottom:	1.74 IN (44.20 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (E) Length:	4.49 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	N/A
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
