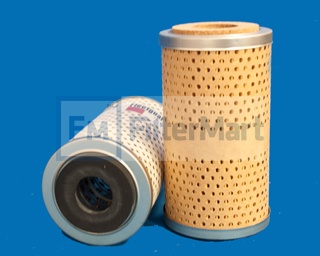

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #10-0029

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.01 IN (76.45 MM)
  (B) Outer Diameter, Bottom:	3.01 IN (76.45 MM)
  (C) Inner Diameter, Top:	1.04 IN (26.42 MM)
  (D) Inner Diameter, Bottom:	1.04 IN (26.42 MM)
  (E) Length:	5.71 IN (26.42 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	CORK
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES - PAPER
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	6.00 LB (2.72 KG)
