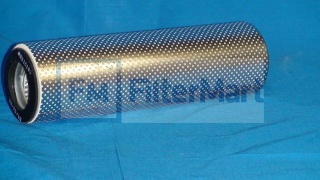

Filtermart™ FIBERGLASS VAPOR PHASE ELEMENT

127 (1 case) 254 (2 cases) 381 (3 cases) 508 (4 cases) 635 (5 cases) 762 (6 cases) 889 (7 cases) 1016 (8 cases) 1143 (9 cases) 1270 (10 cases) 1397 (11 cases) 1524 (12 cases) 1651 (13 cases) 1778 (14 cases) 1905 (15 cases) 2032 (16 cases) 2159 (17 cases) 2286 (18 cases) 2413 (19 cases) 2540 (20 cases) Add To Cart

FMC #10-0858

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*127 per carton - sold by full carton quantities ONLY

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	1.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	.5 PSI
  Maximum Temperature:	275 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.56 IN (90.42 MM)
  (B) Outer Diameter, Bottom:	3.56 IN (90.42 MM)
  (C) Inner Diameter, Top:	2.09 IN (53.09 MM)
  (D) Inner Diameter, Bottom:	2.09 IN (53.09 MM)
  (E) Length:	12.00 IN (53.09 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	POLYURETHANE
  Type of Endcap:	CARBON STREEL
  Center Tube:	CARBON STEEL
  Type of Media:	FIBERGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	127
  Carton Weight:	8.00 LB (3.63 KG)
