All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

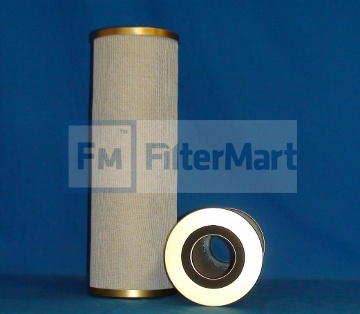

Industrial Filters/Coalescer Filters/Liquid
| Micron Rating: | 30.00 |
| Beta Rating: | |
| Collapse Pressure Rating: | |
| Maximum Temperature: | |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 6.00 IN (152.40 MM) |
| (B) Outer Diameter, Bottom: | 6.00 IN (152.40 MM) |
| (C) Inner Diameter, Top: | 2.63 IN (66.80 MM) |
| (D) Inner Diameter, Bottom: | 2.63 IN (66.80 MM) |
| (E) Length: | 18.00 IN (66.80 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | NONE |
| Type of Media: | FIBERGLASS |
| Filter Area: | SQ.IN. |
| Plating: | |
| Outer Jacket: | NONE - SOCK |
| Configuration: | DOUBLE OPEN ENDS |
| Number per Carton: | 1 |
| Carton Weight: | 5.00 LB (2.27 KG) |
