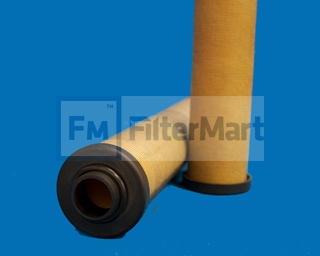

Filtermart™ LIQUID COALESCER ELEMENT

Add To Cart

FMC #16-1290

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Liquid

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	INDISE->OUT
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.13 IN (79.50 MM)
  (B) Outer Diameter, Bottom:	3.13 IN (79.50 MM)
  (C) Inner Diameter, Top:	1.25 IN (31.75 MM)
  (E) Length:	20.50 IN (0.00 MM)
  (F) Thread:	1 1/4" MALE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	GLASS FILLED NYLON
  Center Tube:	NONE
  Type of Media:	FIBERGLASS
  Filter Area:	N/A
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	14.00 LB (6.35 KG)
