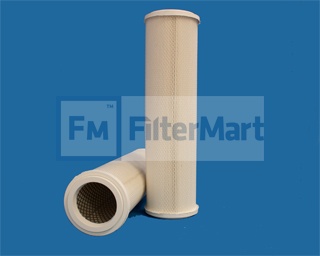

Filtermart™ COMPRESSED AIR ELEMENT

Add To Cart

FMC #18-0008

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*2 per carton

Industrial Filters/Coalescer Filters/Air/Paper-Particulate

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.90 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	180 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.64 IN (92.46 MM)
  (B) Outer Diameter, Bottom:	3.63 IN (92.20 MM)
  (C) Inner Diameter, Top:	2.42 IN (61.47 MM)
  (D) Inner Diameter, Bottom:	2.44 IN (61.98 MM)
  (E) Length:	13.19 IN (61.98 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	URETHAN
  Type of Adhesive:	URETHANE
  Type of Endcap:	URETHANE
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  2
