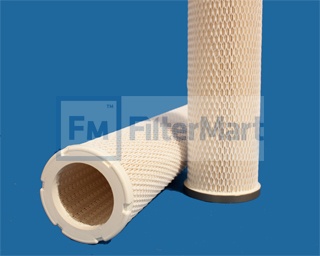

Filtermart™ COMPRESSED AIR ELEMENT

Add To Cart

FMC #18-0096

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*5 per carton

Industrial Filters/Coalescer Filters/Air/Paper-Particulate

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.06 IN (77.72 MM)
  (B) Outer Diameter, Bottom:	3.50 IN (88.90 MM)
  (C) Inner Diameter, Top:	2.14 IN (54.36 MM)
  (E) Length:	28.50 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	POLY
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END B/H

• Packaging Specifications

  Number per Carton:	5
  Carton Weight:	2.00 LB (0.91 KG)
