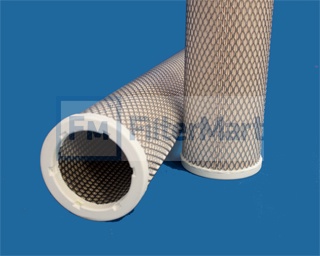

Filtermart™ COMPRESSED AIR ELEMENT

Add To Cart

FMC #18-0226

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Coalescer Filters/Air/Paper-Particulate

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.90 IN (99.06 MM)
  (B) Outer Diameter, Bottom:	3.90 IN (99.06 MM)
  (C) Inner Diameter, Top:	3.00 IN (76.20 MM)
  (D) Inner Diameter, Bottom:	3.00 IN (76.20 MM)
  (E) Length:	28.00 IN (76.20 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.00 LB (1.36 KG)
