All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

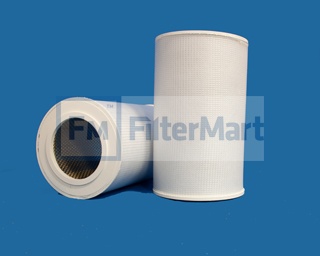

Industrial Filters/Coalescer Filters/Air/Borosilicate Glass
| Micron Rating: | 0.30 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | N/A |
| Maximum Temperature: | 175 F |
| Direction of Flow: | INSIDE->OUT |
| Recommended Changeout Differential Pressure: | 15 PSID |
| (A) Outer Diameter, Top: | 7.25 IN (184.15 MM) |
| (B) Outer Diameter, Bottom: | 7.25 IN (184.15 MM) |
| (C) Inner Diameter, Top: | 4.38 IN (111.25 MM) |
| (D) Inner Diameter, Bottom: | 4.38 IN (111.25 MM) |
| (E) Length: | 12.13 IN (111.25 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | URETHANE |
| Type of Adhesive: | N/A |
| Type of Endcap: | POLYURETHANE |
| Center Tube: | GALVANIZED CARBON STEEL |
| Type of Media: | GLASS/EPOXY |
| Filter Area: | N/A |
| Plating: | N/A |
| Outer Jacket: | YES |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 7.00 LB (3.18 KG) |
