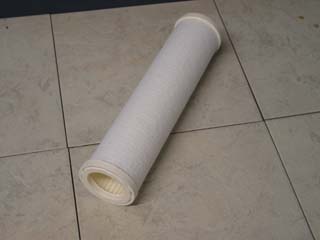

Filtermart™ AIR COALESCER ELEMENT

Add To Cart

FMC #19-0346

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Air/Borosilicate Glass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 0.3 ABSO
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.06 IN (77.72 MM)
  (B) Outer Diameter, Bottom:	3.06 IN (77.72 MM)
  (C) Inner Diameter, Top:	2.14 IN (54.36 MM)
  (D) Inner Diameter, Bottom:	2.14 IN (54.36 MM)
  (E) Length:	13.13 IN (54.36 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	URETHAN
  Type of Adhesive:	POLYURETHANE
  Type of Endcap:	POLYURETHANE
  Center Tube:	POLYPROPYLENE
  Type of Media:	BOROSILICATE
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	2.00 LB (0.91 KG)
