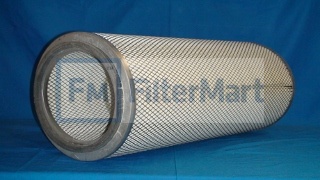

Filtermart™ FLAME RETARDANT OVAL DUST COLLECTOR ELEMENT

Add To Cart

FMC #21-3005

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Dust Collector

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.50 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	180 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	14.40 IN (365.76 MM)
  (B) Outer Diameter, Bottom:	14.40 IN (365.76 MM)
  (C) Inner Diameter, Top:	11.40 IN (289.56 MM)
  (D) Inner Diameter, Bottom:	11.40 IN (289.56 MM)
  (E) Length:	26.00 IN (289.56 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	NANOFIBER-FR
  Filter Area:	189 SQ.FT.
  Plating:	ELECTR-GALVANIZED
  Outer Jacket:	YES - METAL
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	15.00 LB (6.80 KG)
