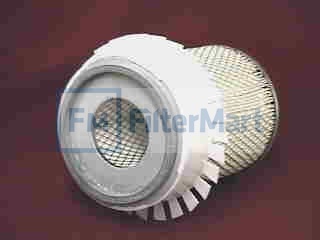

Filtermart™ INTAKE AIR FILTER STANDARD LIFE VERSION

Add To Cart

FMC #22-0483

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	10.08 IN (256.03 MM)
  (B) Outer Diameter, Bottom:	7.93 IN (201.42 MM)
  (C) Inner Diameter, Top:	3.60 IN (91.44 MM)
  (D) Inner Diameter, Bottom:	0.54 IN (13.72 MM)
  (E) Length:	10.56 IN (13.72 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE/BOLT /FINS

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.90 LB (1.77 KG)
