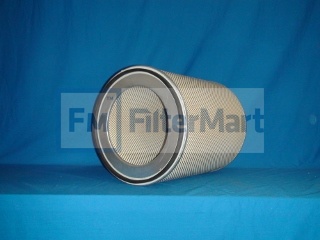

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-4609

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMILAN
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	15.12 IN (384.05 MM)
  (B) Outer Diameter, Bottom:	15.25 IN (387.35 MM)
  (C) Inner Diameter, Top:	10.00 IN (254.00 MM)
  (D) Inner Diameter, Bottom:	0.44 IN (11.18 MM)
  (E) Length:	18.63 IN (11.18 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	N/A
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	CELLULOSE
  Filter Area:	63.98 SQ.FT.
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	SINGLE W/BOLT HOLE

• Packaging Specifications

  Number per Carton:

  1
