All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

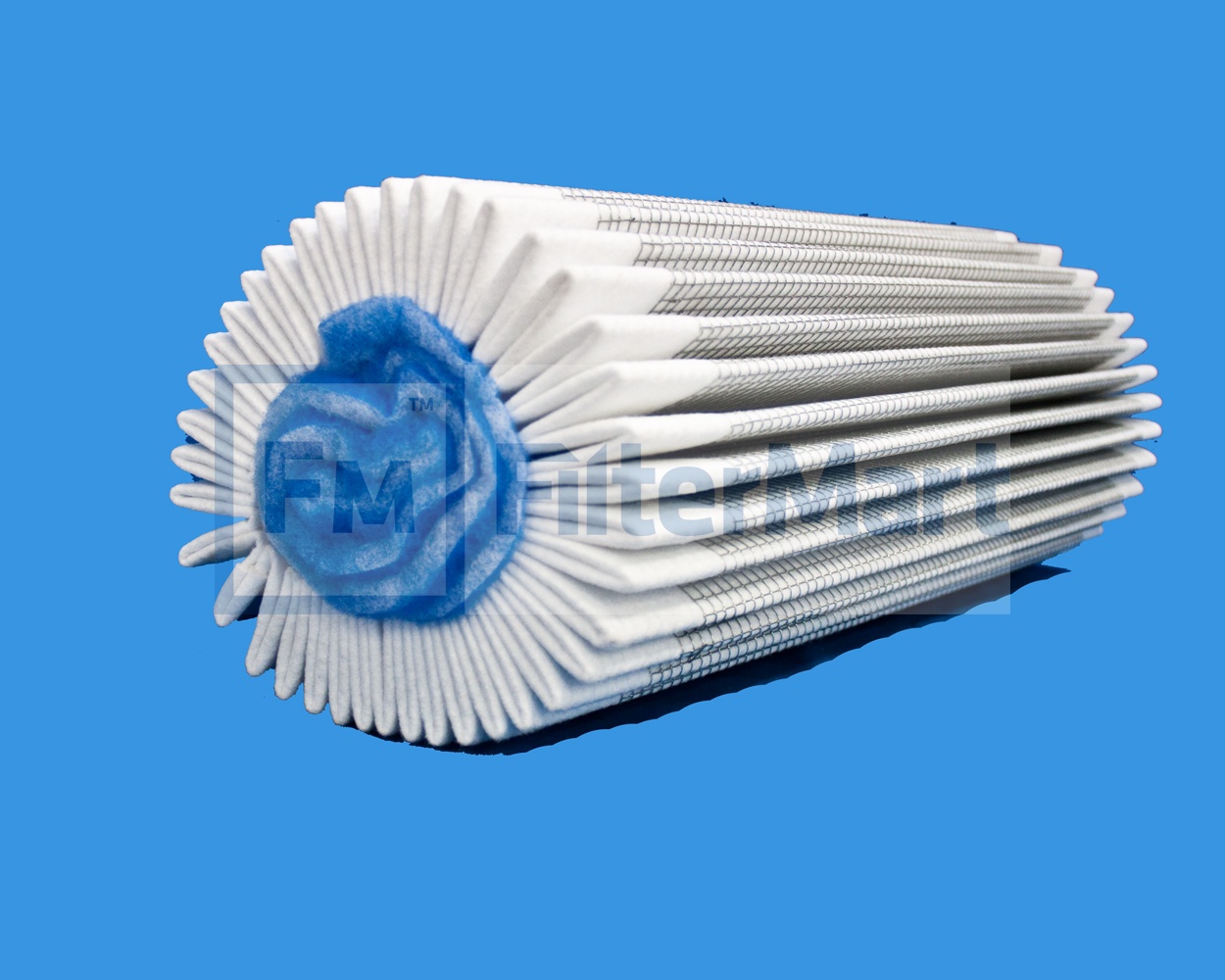

Industrial Filters/Radial Fin Filters/Liquid or Air
| Micron Rating: | 10.00 |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | NOT RATED |
| Maximum Temperature: | 250 F. |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 6.25 IN (158.75 MM) |
| (B) Outer Diameter, Bottom: | 6.25 IN (158.75 MM) |
| (C) Inner Diameter, Top: | 2.50 IN (63.50 MM) |
| (D) Inner Diameter, Bottom: | 2.50 IN (63.50 MM) |
| (E) Length: | 12.00 IN (63.50 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | |
| Type of Adhesive: | POLYVINYLCHLORIDE |
| Type of Endcap: | POLYVINYLCHLORIDE |
| Center Tube: | CARBON STEEL |
| Type of Media: | POLYESTER |
| Filter Area: | 7.3 SQ.IN. |
| Plating: | |
| Outer Jacket: | NONE |
| Configuration: |
| Number per Carton: | 1 |
| Carton Weight: | 4.00 LB (1.81 KG) |
