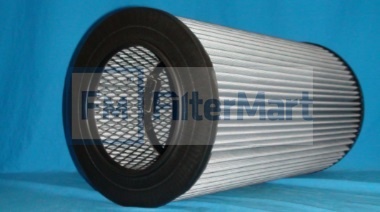

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #23-3004

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 10
  Beta Rating:	N.A.
  Collapse Pressure Rating:	25 PSID
  Maximum Temperature:	200 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	12.50 IN (317.50 MM)
  (C) Inner Diameter, Top:	8.75 IN (222.25 MM)
  (E) Length:	23.50 IN (0.00 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLASTISOL
  Center Tube:	C. STEEL
  Type of Media:
  Filter Area:	54.7 SQ.FT.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	16.00 LB (7.26 KG)
