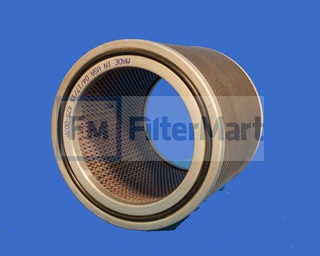

Filtermart™ AIR/OIL SEPARATOR ELEMENT

Add To Cart

FMC #24-1404

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Air/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.10
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	250 F
  Direction of Flow:	INSIDE-->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	10.63 IN (270.00 MM)
  (B) Outer Diameter, Bottom:	10.63 IN (270.00 MM)
  (C) Inner Diameter, Top:	7.63 IN (193.80 MM)
  (D) Inner Diameter, Bottom:	7.63 IN (193.80 MM)
  (E) Length:	9.75 IN (193.80 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NEOPRENE
  Type of Adhesive:	N/A
  Type of Endcap:	ALUMINUM
  Center Tube:	304 STAINLESS STEEL
  Type of Media:	FIBER/MICROGLA
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	20.00 LB (9.07 KG)
