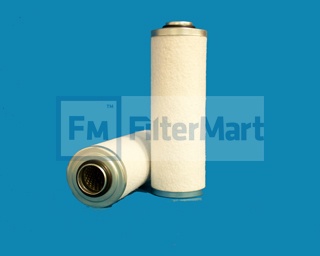

Filtermart™ AIR/OIL SEPARATOR ELEMENT

Add To Cart

FMC #24-1463

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Air/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.70 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	300 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.84 IN (72.14 MM)
  (B) Outer Diameter, Bottom:	2.84 IN (72.14 MM)
  (C) Inner Diameter, Top:	1.30 IN (33.02 MM)
  (E) Length:	8.32 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	METAL CORE RETAINER
  Type of Media:	MICROGLASS
  Filter Area:
  Plating:
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN ENDS

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	0.80 LB (0.36 KG)
